Barn Structure Ready to Buy

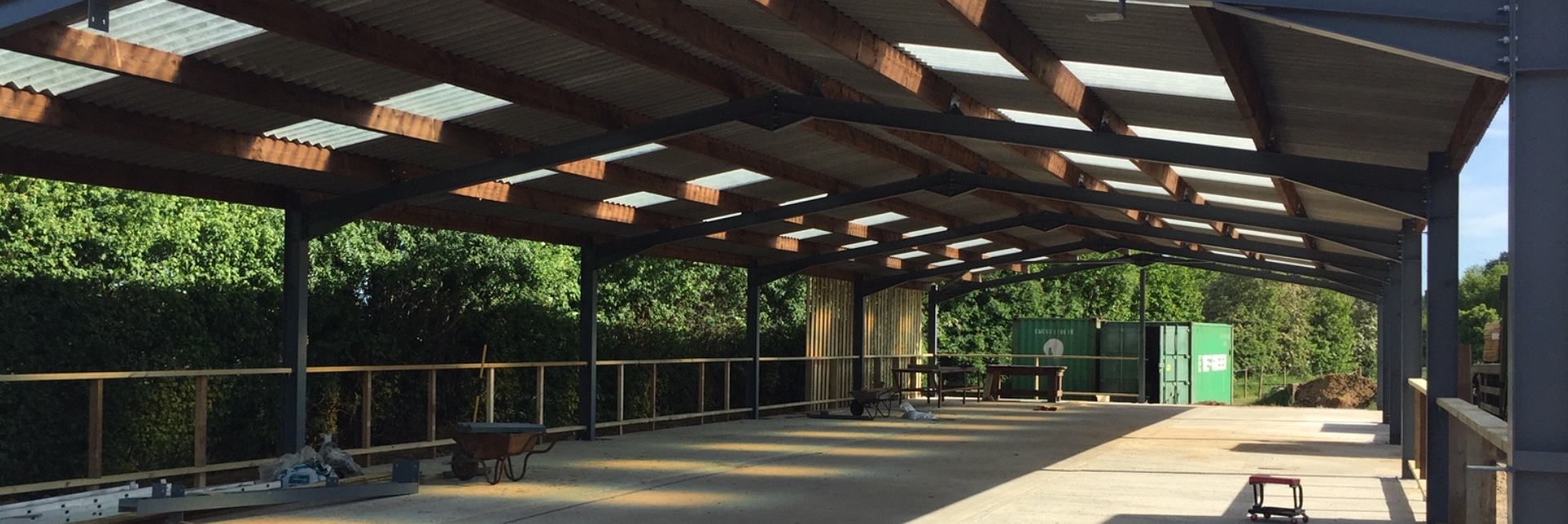

A Barn Structure in Kit Form being 50’-0” Span x 100’-0” Long in 5 No 20’-0” Bays x 20’-0” to Eaves.
This Structure will be designed to a full Agricultural Class II BS 5502 Specification.
Manufactured in accordance with EN: 1090 Execution Class 1.
This quotation includes for all full set of Drawings to assist you in the complete construction of your proposed building.
All steelwork will receive 1 No Coat of High Build Phosphate Grey Oxide Paint prior to delivery. A small of touch up will be included in your delivery.
12 No Main Stanchions.
12 No Main Portal Rafters @ 10 Deg Roof Pitch.
4 No Diagonal Roof Bracings in Box Section
4 No Diagonal Vertical Bracings in Box Section
2 No Gable Hanger, cross angle and brace.
20 No Angle Knee Bracings
12 No Amount of Various Thickness Packer Plates
8.7 No Tonnes of Structural steelwork.
We have allowed all high tensile zinc plated structural steel bolts washers and nuts.
We have allowed all holding down bolts, washer plates and cardboard cones for foundation pads below floor level. We can supply Resign anchors if required.
TIMBER EAVES BEAMS
We have allowed 2 No Lines of 3”x 9” Treated timber eaves beams Secured at the stanchion top acting as a support for the roof and vertical cladding.
We have allowed 12 No Lines of 3” x 9” Treated Timber Purlins Secured to the main rafters acting as a support for the roof cladding.
TIMBER CLADDING RAILS
The whole of the roof will be clad in:
Bigsix Profile Natural Grey single skin sheeting with closed crown sheets.
We have allowed to supply :
.5th Plastisol coated single skin box profile steel sheeting colour to be agreed.
To the areas as stated below complete with all flashings and fixings.
Side One Open
Side Two Open
Gable One Clad Square to Eaves Only
Gable Two Clad Square to Eaves Only
PVC RAIN WATER GOODS
2 No Lines of 170mm Half Round Deep Flow Black PVC Guttering running down the eaves to both sides of the building. Fixed to a gutter facia at 1.000 crs complete with 1 No 110 Dia Rain Water Pipe per run terminating at floor level.
All Timber supplied with the contract will be of standard lengths and will need cutting to its exact length, and drilling on site by the customer.
ACCESS AND UNLOADING
If you have any specific access or unloading requirements, please let us know asap.
25% Deposit with your order.
75% To be paid prior to delivery unless agreed otherwise.
To be agreed
